Ever stood on a construction site, watching a massive truck with a long boom deliver concrete to seemingly impossible locations and thought, “How does that thing work?” Concrete pump trucks have completely transformed construction, as commercial projects now depend on them for concrete placement. The global concrete pump market was valued at approximately USD 4.57 billion in 2020. It is projected to grow to USD 6.61 billion by 2028, reflecting a compound annual growth rate (CAGR) of 4.9%. These engineering marvels can pump concrete at incredible rates up to 200 cubic yards per hour, enough to fill an average backyard swimming pool in about 30 minutes. Even more impressive, modern pumps can send concrete to heights over 200 feet and distances greater than 700 feet horizontally. But how does a truck push that thick, heavy concrete through pipes and deliver it with such precision? Let’s get the answers!

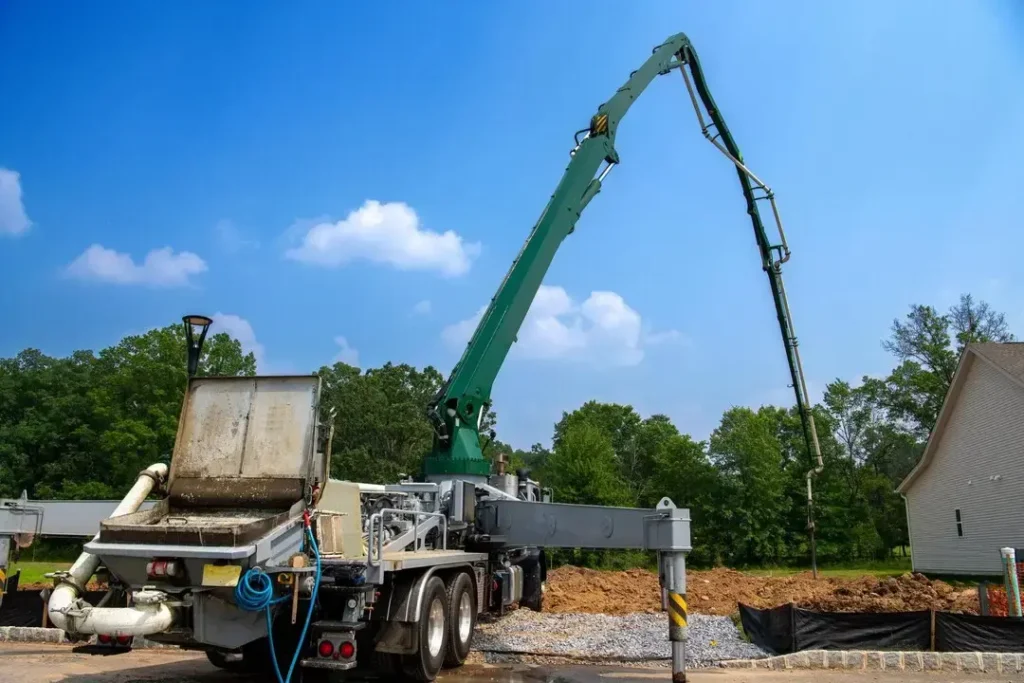

Basic Components of a Concrete Pump Truck
That towering machine you see on construction sites combines several systems working in harmony. Understanding the main components helps explain how these trucks accomplish their seemingly magical concrete delivery.
A typical concrete pump truck consists of three main sections: the truck itself, the concrete pumping system, and the distribution boom. Each plays a crucial role in the efficient movement of concrete from the mixing truck to the exact placement location.
Truck Chassis and Outriggers
The foundation of any concrete pump truck starts with a commercial-grade truck chassis. This isn’t your everyday pickup as these specialised vehicles are built to handle tremendous weight and provide stability during pumping operations.
When the truck arrives on site, the first step is always to deploy the outriggers, leg-like supports that extend from the truck’s sides. These stabilisers prevent the truck from tipping when the boom extends and moves with thousands of pounds of concrete flowing through it. Properly set outriggers can increase the truck’s effective footprint and create a stable pumping operation platform.
Concrete Pumping System
The heart of the operation lies in the pumping mechanism itself. Most modern concrete pump trucks use hydraulic twin-cylinder systems to create the force needed to move concrete through the delivery pipeline.
The twin-cylinder design uses two separate cylinders working in alternating sequence:
- While one cylinder draws concrete from the hopper
- The other simultaneously pushes concrete into the delivery pipeline
- Then they switch functions, creating a continuous flow
This alternating action creates tremendous pressure, sometimes exceeding 1,000 PSI. Basically, it allows the concrete to move efficiently through the system without separation or blockage, even when pumping to extreme heights or distances.
The Distribution Boom
The most visually striking part of any concrete pump truck is its articulated boom. This long, multi-sectioned arm can reach over buildings, down into foundations, or across obstacles.
Modern booms are engineering marvels:
- Typically featuring 3-6 separate sections that can fold and extend
- Constructed from high-strength steel to balance weight and durability
- Designed with hydraulic cylinders at each joint for precise movement
- Capable of rotating 360° around the truck in many models
The boom carries specially designed delivery pipes that must withstand tremendous pressure while remaining lightweight enough to extend to impressive heights. These pipes typically range from 4-5 inches in diameter, balancing flow capacity with weight considerations.
Concrete Pumping Process: Step by Step
Now that you understand the components, let’s walk through exactly how concrete moves from the mixing truck to its final destination in a continuous, controlled flow.
Step 1: Setup and Preparation
Before any concrete starts flowing, proper positioning and setup are critical. This preliminary phase includes:
The setup process typically takes 15-30 minutes, depending on site conditions and the complexity of the pour. This preparation time is a small investment compared to the hours saved during actual concrete placement.
- Positioning the truck for optimal boom reach and site access
- Extending and securing all outriggers on stable ground
- Performing safety checks on the pumping system
- Connecting the ready-mix truck to the pump’s hopper
- Running a slurry mixture (water and cement) through the pipes to lubricate them
Step 2: The Transfer System
Once properly positioned, the concrete transfer begins at the hopper. This large receptacle at the truck’s rear is where ready-mix trucks discharge their loads.
From the hopper, concrete enters the all-important valve system. Two main types dominate the industry:
- S-Tube Valve: A simpler design where an S-shaped tube rocks back and forth between the two delivery cylinders and the output pipe
- Rock Valve: A more complex system using a rotating cylinder with precisely engineered channels to direct flow
Both systems serve the same essential purpose: ensuring concrete moves from the pumping cylinders to the delivery pipeline without backflow or interruption. The valve system must withstand tremendous abrasion from the concrete mixture while maintaining perfect seals under high pressure.
Step 3: The Pumping Action
The twin-cylinder hydraulic system creates the powerful, rhythmic pumping action that keeps concrete moving. Here’s how it works in detail:
This back-and-forth pumping action happens quickly, with modern pumps completing up to 30 strokes per minute. The operator adjusts the speed based on the pouring needs and the concrete mix properties.
- The first cylinder retracts, creating a vacuum that draws concrete from the hopper
- Simultaneously, the second cylinder extends, pushing its load of concrete into the delivery pipeline
- The valve system switches position
- Now the second cylinder draws concrete while the first pushes
- This alternation continues, creating a consistent flow
Step 4: Boom Placement and Concrete Delivery
As the pumping system operates in the background, the operator carefully controls the distribution boom to position the delivery hose precisely where the concrete is needed.
Modern boom controls allow for:
- Remote operation with wireless controllers
- Incremental movements as small as inches
- Programmable positions for repetitive pours
- Safety features preventing boom overextension
At the end of the boom, a flexible rubber hose allows the concrete placement crew to direct the flow with precision. This final section typically spans 8-12 feet, providing flexibility for detailed work around reinforcement and formwork.
Specialised Concrete Pump Truck Types and Capabilities
Not all concrete pump trucks are created equal. Different projects require different pumping capabilities, leading to several specialised types in the industry.
Boom Pumps vs. Line Pumps
While concrete boom pumps get all the attention with their impressive reach, line pumps serve a crucial role in many construction scenarios.
Type | Best For | Typical Capacity | Advantages | Limitations |
Boom Pump | Multi-story buildings, large footings, elevated slabs | 75-200 cubic yards/hour | Height and reach capabilities, speed of placement | Higher cost, requires adequate setup space |
Line Pump | Interior work, underground applications, and smaller projects | 30-100 cubic yards/hour | More affordable access to confined spaces | Requires manual pipe layout, slower setup |
Both types utilise similar pumping mechanisms, but line pumps require manual assembly of delivery pipes rather than using an articulated boom.
Size Classifications of Boom Pumps
Boom pumps are typically classified by their reach, with models available to suit different project requirements:
The construction industry has adopted standard sizing metrics, with the most common boom lengths being 32, 36, 38, 42, 47, 52, 56, 61, and 65 meters. Larger units become increasingly specialised and are typically only available in major metropolitan areas.
- Small Boom Pumps (20-30 meters): Perfect for residential work and smaller commercial projects
- Medium Boom Pumps (30-50 meters): The workhorses of commercial construction
- Large Boom Pumps (50+ meters): Specialised units for high-rise construction
Specialty Configurations
Beyond standard boom and line pumps, several specialised configurations address specific construction challenges. These specialised units may come at premium rental rates but can save substantial labour and time costs on projects with unique requirements.
- Separate Placing Booms: Detachable booms that mount to towers for high-rise construction
- Spider Pumps: Compact units that can fit through standard doorways for interior work
- Underground Pumps: Specialised configurations for tunnel and mining applications
- Trailer-Mounted Pumps: High-capacity pumps without booms for specialised applications
Technical Considerations in Concrete Pumping
Successfully operating a concrete pump truck involves understanding several technical aspects that affect performance and reliability.
Concrete Mix Design for Pumpability
Not all concrete mixes pump equally well. The ideal pump mix balances:
Concrete engineers typically design “pump mixes” with specific slump values (usually 4-6 inches), adequate fine aggregate content, and sometimes special admixtures to enhance flow characteristics while maintaining strength requirements.
- Aggregate Size: Generally limited to 1/3 the diameter of the delivery pipe
- Sand Content: Higher proportions than non-pumped mixes to provide “lubrication”
- Cement Content: Sufficient paste volume to facilitate flow
- Water-Cement Ratio: Balanced for workability without compromising strength
- Admixtures: Often including superplasticizers to enhance flow
Managing Pressure and Flow Rates
One of the most critical aspects of pump operation is managing pressure within the system. Factors affecting pressure include:
- Vertical Height: Each 10 feet of vertical rise adds approximately 5 PSI
- Horizontal Distance: Creates friction, requiring additional pressure
- Pipe Diameter: Smaller diameters create more resistance
- Concrete Viscosity: Stiffer mixes require higher pressure
- Pumping Speed: Faster pumping requires more pressure
Common Challenges and Solutions
Even with proper planning, concrete pumping can present challenges. Experienced operators know how to address common issues:
Most issues can be prevented through proper planning, using an appropriate mix of designs, and regular equipment maintenance. Pumping problems stem from improper concrete mix specifications or inadequate system lubrication before pumping begins.
- Blockages: Often resolved using the pump’s “reverse” function or, in severe cases, disassembly of affected pipe sections
- Air Pockets: Prevented by proper priming with cement slurry before pumping begins
- Segregation: Managed through an appropriate mix design and careful boom positioning
- Boom Stability: Maintained by following manufacturer’s guidelines for outrigger placement
Safety Considerations and Best Practices
Concrete pump trucks are powerful machines operating under extreme pressure, making safety protocols essential.
Site Assessment and Setup Safety
Before pumping begins, a thorough site assessment prevents many potential problems:
Most reputable pumping companies have detailed pre-pumping checklists that operators must complete before beginning work. These assessments typically take 15-20 minutes but can prevent hours of delays or dangerous situations.
- Overhead Clearance: Checking for power lines, trees, or other obstructions
- Ground Stability: Ensuring outriggers have solid footing
- Access Planning: Verifying routes for ready-mix trucks
- Communication Protocols: Establishing clear signals between the operator and the placement crew
Operational Safety Measures
During pumping operations, several safety practices are essential:
According to the Health and Safety Authority, proper training reduces pump-related incidents. Most serious accidents involve boom contact with power lines or improper outrigger deployment.
- Maintaining safe distances from power lines (minimum 20 feet)
- Keeping personnel clear of moving boom components
- Using designated spotters during placement
- Never attempt to clear blockages while the system is pressurised
- Following the manufacturer’s guidelines for maximum pressure and flow rates
What’s Next in Concrete Pumping Technology?
The concrete pumping industry continues to evolve, with several innovations shaping its future:
- Computer-Controlled Pumping: Systems that automatically adjust pressure and flow based on boom position
- Carbon Fiber Boom Components: Reducing weight while maintaining strength
- Electric and Hybrid Pump Trucks: Reducing emissions for environmentally sensitive projects
- Advanced Remote Controls: Featuring haptic feedback and augmented reality displays
- Automated Washout Systems: Reducing water usage and environmental impact
The Power Behind Modern Construction
Concrete pump trucks are a game-changer in construction. They help move concrete to high places and tricky spots, making big jobs faster and safer.
Next time you see one at a construction site, you’ll know how it works and why it’s so important in building the world around us. These machines make what once seemed impossible possible.
Need concrete that gets the job done right? Pro mix Concrete delivers top-quality mixes with precision every time. Get in touch today and let’s make your next project a success!
Frequently Asked Questions
Concrete pump trucks use hydraulic systems to move concrete through pipes, with a hopper receiving the material and twin-cylinder pumps pushing it forward for delivery.
Boom pumps are mounted on trucks with a movable arm, line pumps use hoses for smaller jobs, and stationary pumps are fixed for long-term projects.
Concrete pumping allows for faster, cleaner delivery to hard-to-reach areas, reducing labour costs and providing precision in placement.
Concrete pump hoses can extend up to 150 meters for line pumps, and boom pumps can reach heights of up to 72 meters.
Concrete pumping is cleaner than traditional methods, with minimal mess due to the use of pipes and hoses, but some cleanup may still be necessary.
